  1. Product
  3. MiniRay-Amp
MiniRay-Amp
Key feature

? Highly integrated, Mixer /DSP/ Amplifier 3 in1
? Same dimensions & rigging design as the MiniRay
? PC or iPad remote control, wireless playback via Bluetooth

PDF

Parameters


MiniRay-Amp

MiniRay-Amp+

Power Amplifier Module

Channels

3Channels

4Channels

Output Power

2 x750W @4Ω +1 x1500W@8Ω

2 x1500W @8Ω +2 x1500W @8Ω

Frequency Response

20 Hz - 20 kHz ±0.5dB

SNR 20 Hz - 20 kHz A-weighted @8Ω

Typical＞115dB

THD+N (0.1W-1/2Power)

＜0.08%（Typical ＜0.05%）

DSP module

Sampling Rate/Bit Depth

48kHz / 24 Bit

Filters

HPF/LPF/31 band GEQ/8 band PEQ/1k taps FIR filter

Built-in mixer module

Input Channels

4 mic/line in; 2 line in; 2 AES Digital lnputs; stereo bluetooth input

On-board FX

3 stereo effects:Reverb/Delay/Chorus


Remote Control

Port:TCP/IP, Built-in WIFI     Software: PC/iPad


Nominal Power Requirement

100-240V  AC 50-60Hz


Dimensions(W × H × D)

448 x 296 x 156 mm / 17.6 x 11.7 x 6.1 in


Weight

7.8 kg / 17.1 lbs

10.7 kg / 23.5 lbs

Details

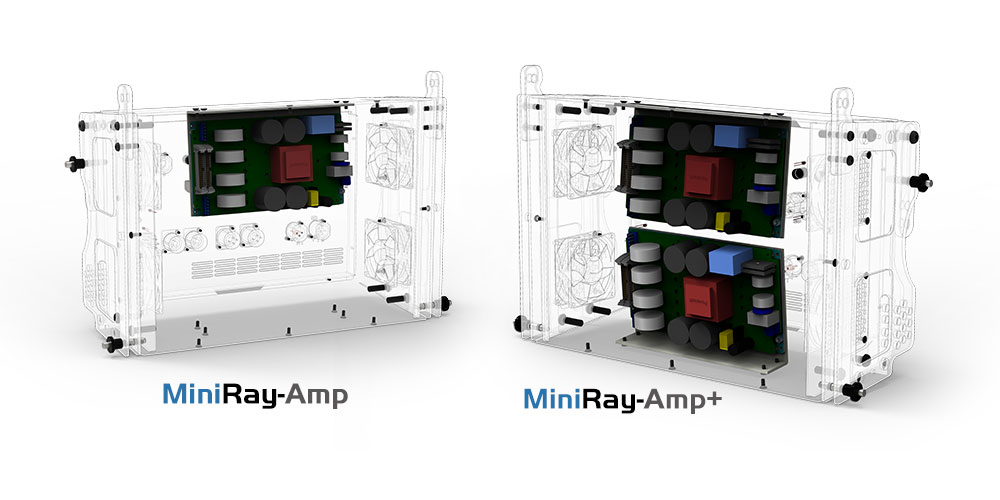

Mixer +DSP+ Amplifier, 3 in1

MiniRay-Amp is not just an amplifier, it is a complex of an 8-channel digital mixing-console, 2 in 3 out DSP with FIR processing, and a 3-channel high-power class D amplifier. Two MiniRay-Amp can be combined into a 16-channel console using the AES digital connection.

MiniRay-Amp is equipped with Bluetooth, for connecting your Smart-phone or laptop, for instant music replay, free from cable.

MiniRay system simplifies sound system from:(Sound source+Mixer+DSP processoring+Amplifier) , 5 to 2.
